Brand Name : HUATEC
Model Number : UT-PT-MT
Certification : CE
Place of Origin : China
MOQ : 1pc
Payment Terms : T/T,Paypal
Supply Ability : 10pcs/month
Delivery Time : 5-7 working days
Packaging Details : Carton packaging box
defects : 1/2/3
Flawed Test Specimens UT-PT-MT Weld Seam Test Block
Serial number | Specimen type | Size: mm | Welded joint type | note |

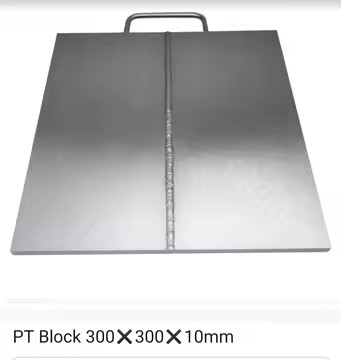

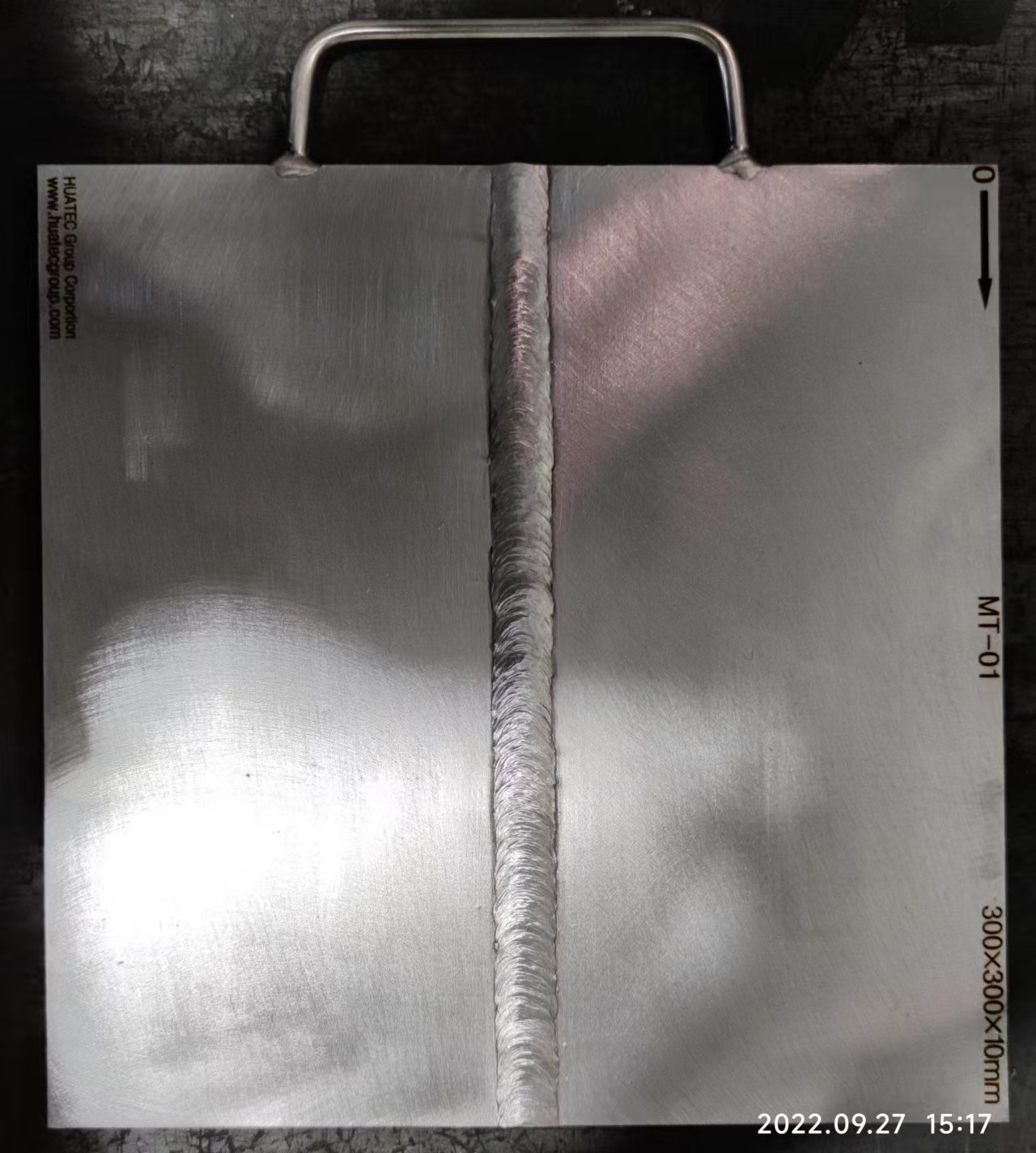

MT/PT-01 | Plate – plate (single V) | 300X300X10 |
| 1or2 defects |
300X150X10 | Stainless steel | |||
UT-01 | Plate – plate (single V) | 300X300X12 |
3 defects | |
UT-02 | 300X300X16 | |||
UT-03 | 300X300X20 | |||
UT-04 |
Plate - plate (double V) | 300X300X20 | ||
UT-05 | 300X300X22 | |||
UT-06 | 300x 300X25 | |||
UT-07 | 300X 300X 30 | |||
UT-08 |
Tube-tube (single V) | φ105X 12X300 |
| |
UT-09 | φ155X 16X 300 | |||
UT-10 | φ155X20X 300 | |||
UT-11 | φ155X 25X 300 | |||
UT-12 | φ1550X 12X300 | |||
UT-13 | φ200X12X300 | |||
UT-14 | φ200X20 X300 | |||
UT-15 | φ200X25X 300 | |||
UT-16 | φ290X25X 300 | |||
UT-17 |
Plate - plate T type (single V) | 200X 250X 300X 12 | ||
UT-18 | 200X 250X 300X20 | |||
UT-19 | 200X 250X 300X25 | |||
UT-20 |
Plate - plate T type (double V) | 200X 250X 300X20 | ||
UT-21 | 200X 250X 300X25 | |||
UT-22 |
Plate - plate Y type (single V) | 200X250X300X20 | ||
UT-23 | Tube - plate T type | Tube:φ105X12X 150 |
| |
Plate: 400X 400X20 | ||||
UT-24 |
Tube - plate T type | Tube: φ200x12x 150 | ||
Plate: 500X 500X20 | ||||
UT-25 | Tube-plate T type (insert type) | Tube: φ105X 12X 150 |
| |
Plate: 400X400X20 | ||||
UT-26 | Tube-plate T type (insert type) | Tube: φ200x12x 150 | ||
Plate: 500X500X20 |
![]() |
Flawed Test Specimens UT-PT-MT Weld Seam Test Block Defects 1/2/3 Superior Performance Images |
