DA235 Lemo 00 Microdot Cable for DA312 Probe

DA235 Lemo 00 -Microdot Dual Probe Cable for DA312 probe

Electrical performance
*Impedance matching: The DA235 cable features a characteristic impedance that matches the DA312 probe and related detection equipment, typically 50 ohms or 75 ohms. This ensures that the ultrasonic signal achieves maximum power transmission during transmission, reducing signal reflection and distortion.
*Signal transmission bandwidth: This cable can support the ultrasonic signal bandwidth required by the DA312 probe, generally reaching several MHz or even higher, to ensure the accurate transmission of high-frequency ultrasonic signals and meet the signal processing requirements of the probe when measuring the thickness of different materials.

Physical properties
*Length specifications: Common lengths include 1.5 meters, 3 meters, etc. Different length specifications can meet the requirements of operating distance in different detection scenarios. For example, in the detection of some large equipment, a longer cable may be needed to bring the probe to the detection area.
*Cable material
Outer sheath: Usually made of wear-resistant and corrosion-resistant polyvinyl chloride (PVC) or polyurethane (PU) materials, it has excellent mechanical and protective properties, can adapt to various harsh industrial environments, and prevent the cable from being damaged by external factors.
*Internal wires: High-purity copper wires are used to reduce the resistance of signal transmission and minimize signal attenuation. Meanwhile, the wires usually adopt a multi-strand twisted structure, which increases the flexibility of the cable and facilitates flexible operation during the detection process.

Lemo 00 Microdot probe cable

DA312 probe replacement cable

dual probe NDT testing cable

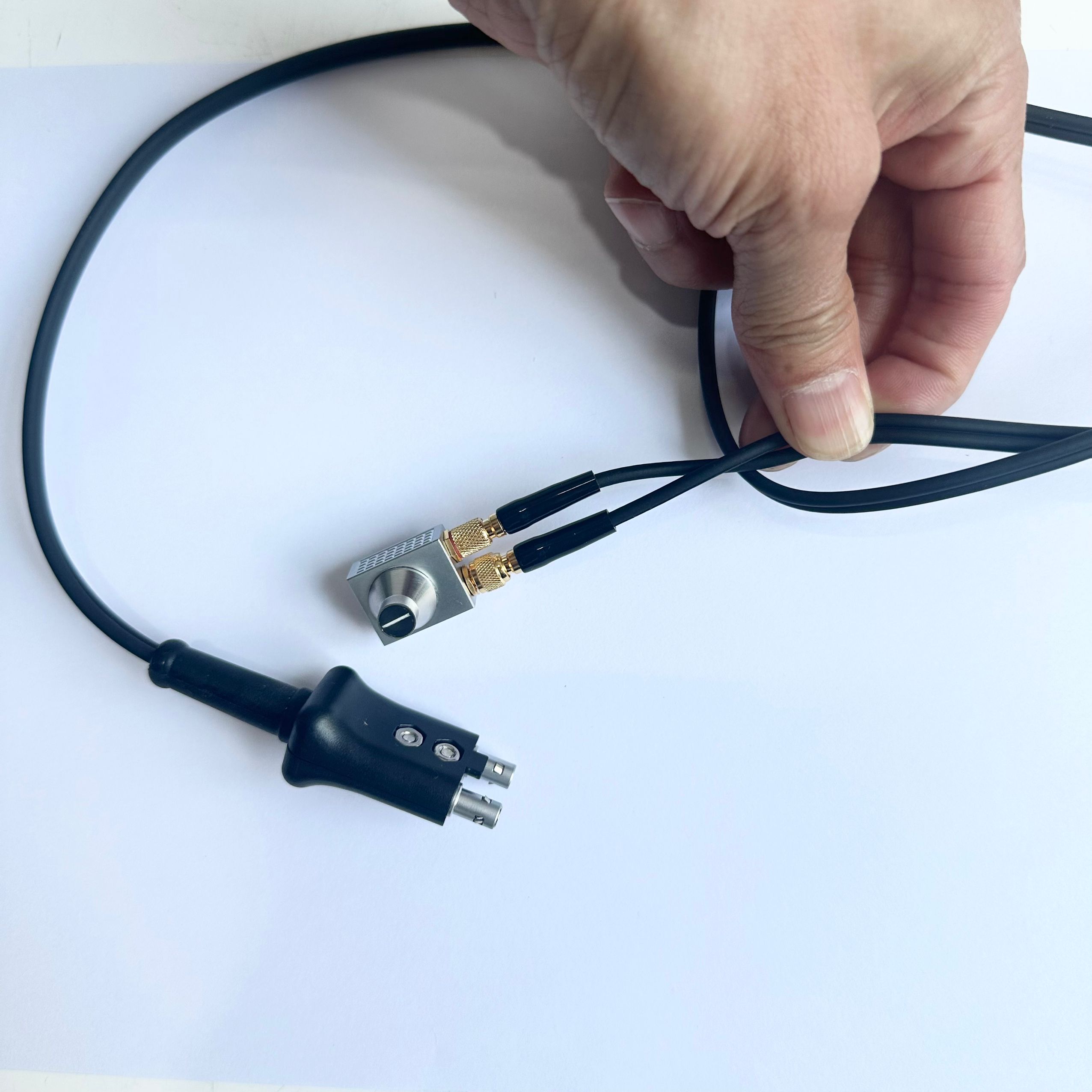

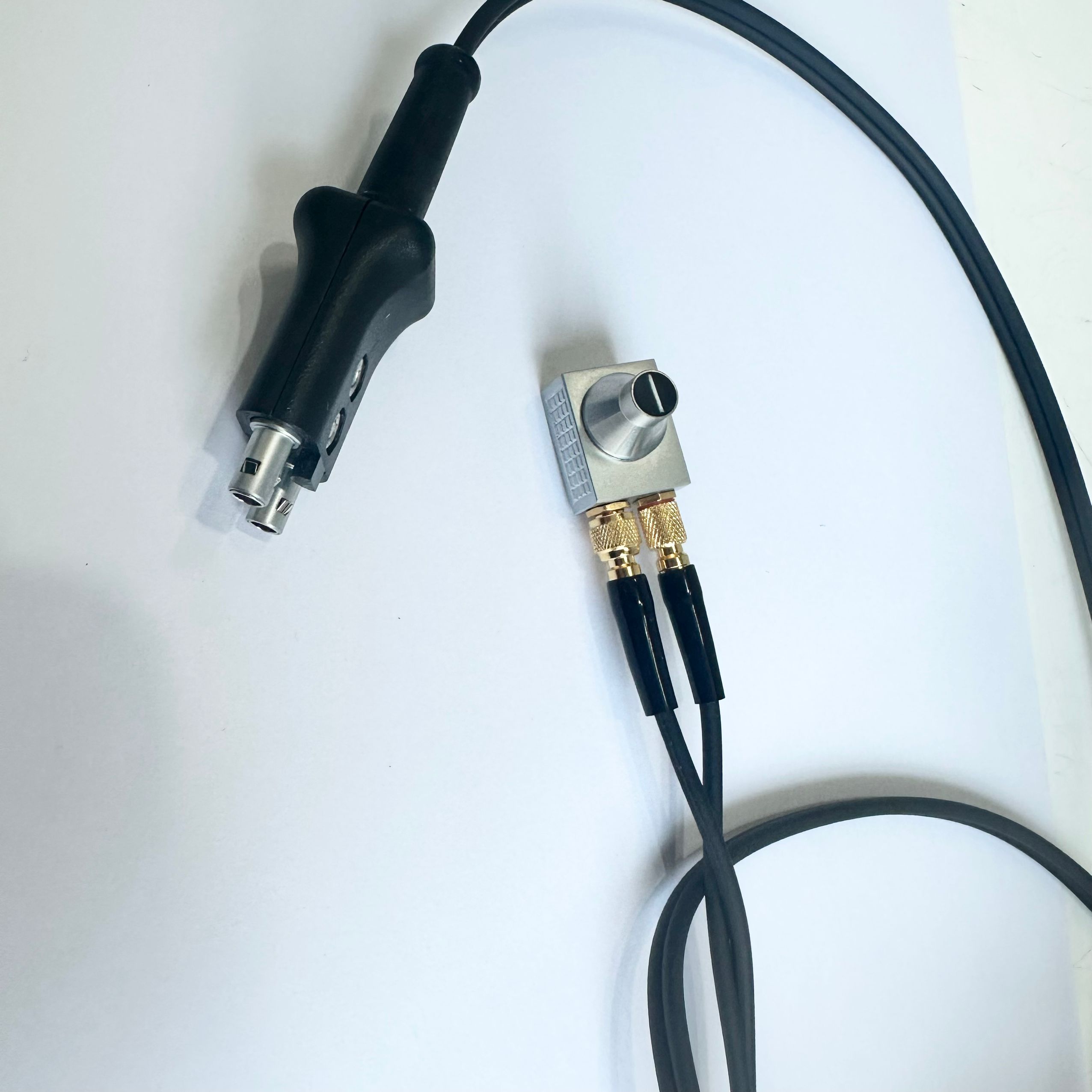

DA235 Lemo 00 Microdot Cable for DA312 Probe Images
