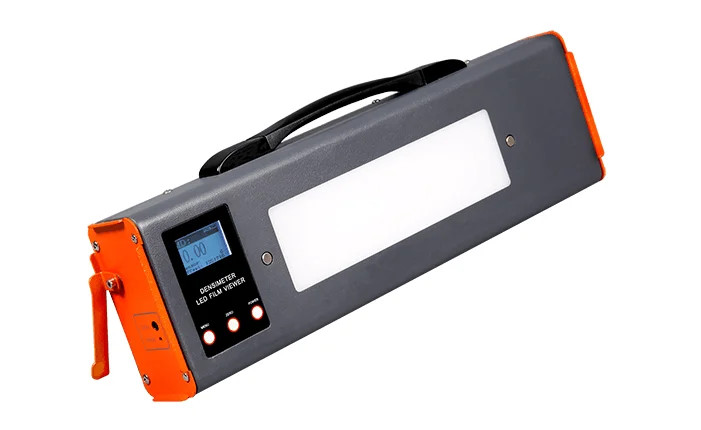

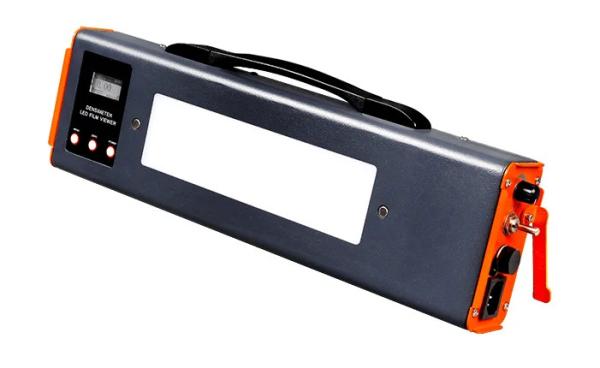

HFV-2206M LED Industrial Radiographic Film Viewer and Densitometer all in one
Features:
Maximum Light Intensity: > 70,000cd/㎡
Easily View < 4. 0 Density
Pure White LED Light
50,000 Hour Lamp Life
Low Power Consumption
Fan cooling
Foot Switch
Uniform Viewing Area: 98% Full Screen
Dimmer Control: 0% to 100% continuous
Surface temperature: <18°
Built-desktop stand
Design: Modern, Stylish and Simple
Power Requirements: 85-264VAC/47-60Hz
The power adapter: AC: 90-264VAC / 47-63Hz DC: 12V 5A
Safety Regulation and Electromagnetic Compatibility
Specifications:
| Adapter Input voltage | 85-264VAC / 47-60Hz DC: 12V 5A Power: 60W |
| Maximum Light Intensity | >70,000 Cd/㎡ |
| Film density | <4.0D According to the inspection report |
| Surface temperature | <18°Celsius Continuous operation for 24 hours) |
| Uniform Viewing Area | 98% Full Screen |
| Dimmer Control | 0% to 100% continuous |
| Control mode | Manual + Foot-switch |
| Cooling Method | Forced air cooling |
| Dimensions | 425mm*60mm*130 mm (L*W*H) |
| Viewer window | 220mm*60mm (L*W) |
| Viewing-mask window | 200 mm*40 mm (L*W) |
| Power | 50W |
| Weight | 2.5 KG |
Package Contents:
LED viewer with densitometer HFV-2260M 1pc
Foot switch 1pc
AC power cord 1pc
Viewing mask 1pc
Magnetic film holder 2pcs
Magnetic ruler 1pc
User's manual 1pc
Calibration certificate 1pc
Trouble shooting Cause of the fault:
The power light is not on Elimination method: Check the power switch (8) to see if it is on the position of the foot switch, if is, should use in the foot switch mode. Check the lightness adjustment knob on the right-side control penal to see if it is on the minimum position, it is, should turn it to the proper lightness in the clockwise.
