High Precision Ultrasonic Thickness Gauge Ultrasonic Thickness Measurement

  • 1
  • 2

Brand Name : HUATEC

Model Number : TG-3230

Certification : ISO，CE，Gost

Place of Origin : China

MOQ : 1 set

Payment Terms : L/C, T/T, Western Union,Paypal

Supply Ability : 100 sets per month

Delivery Time : 3-7 days

Packaging Details : in High quality carton

Product name : Ultrasonic Thickness Measurement

Model : TG-3230

Measuring Accuracy : ±0.005mm or 0.0002 inch

Display Resolution : mm : 0.1 / 0.01 / 0.001

Display LCD : 42×57mm LCD size

Power Source : 2 pcs. 1.5v AA size batteries

Contact Now

HIGH PRECISION ULTRASONIC THICKNESS GAUGE Ultrasonic Thickness Measurement

TECHNICAL SPECIFICATIONS

* High Accuracy And Resolution Up To 0.001mm or 0.0001 inch
* Measuring Ultra Thin Sample As Low As 0.15mm or 0.006 inch
* Display Units:Imperlal And Metric
* Automatic Self Calibration
* Couplant Indicator
* Automatic Power Off Device
* High-Low Limit Alarm
* Lcd Brightness Adjust
* Low Battery Indictor

Measuring Range (for steel) Interface-Echo Mode:
(I-E or Standard Model)		 1.50mm-20.0mm
(0.059in -0.787 in)
Echo-Echo Mode:
(E-E or High Precision Mode)		 0.15mm-10.0mm
(0.006in - 0.394in)
Measuring Accuracy ±0.005mm or 0.0002 inch (if thickness < 3mm)
±0.05mm or 0.002 inch (if thickness < 20mm)
Display Resolution mm:0.1/0.01/0.001
inch:0.01 /0.001/0.0001
Sound Velocity Range 1000 to 9999 m/sec (0.0394 -0.3936 inch/ms)
Measuring Refresh Frequency 4Hz in normal mode, up to 25Hz
Memory Capacity 500 test values
Multiple Calibrations One point or Two Point
Display LCD 42×57mm LCD size with El backlight and adjustable contrast, font size up to 13.75mm (0.54 inch)
Power Source 2 pcs. 1.5v AA size batteries
Continuous working period About 200 hours (with backlight off)
Power off Auto power off if idle for 4 minutes
Operating Temperature -10 "Cto +50 °C
Unit Size 2.9 Wx5.9 Hx1.26 D inches (73 Wx 149 Hx32 D mm).
Weight 200g

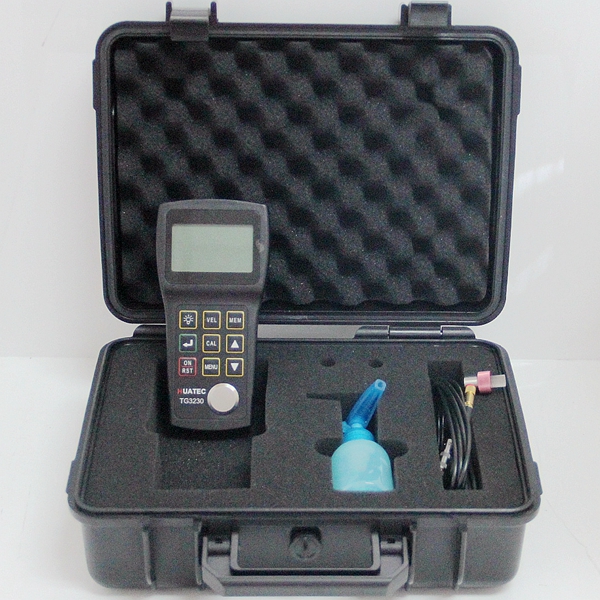

STANDARD DELIVERY

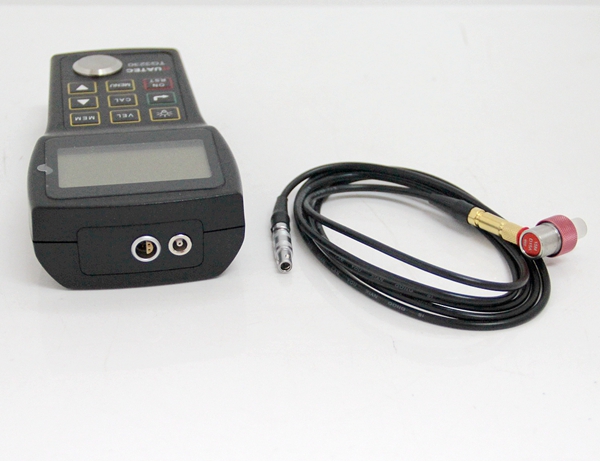

1. Ultrasonic Thickness Gauge TG-3230 Main unit with Calibration block (4.00 mm)
2. Precision Probe (D11R) with Replaceable Delay Tip
3. Coupling Paste
4. Operation Manual
5. Consumer-Type 2 AA Type Alkaline Battery (3 Volt)
6. Carrying Case

High Precision Ultrasonic Thickness Gauge Ultrasonic Thickness Measurement

High Precision Ultrasonic Thickness Gauge Ultrasonic Thickness Measurement

High Precision Ultrasonic Thickness Gauge Ultrasonic Thickness Measurement
